Kirin 980 dieshot

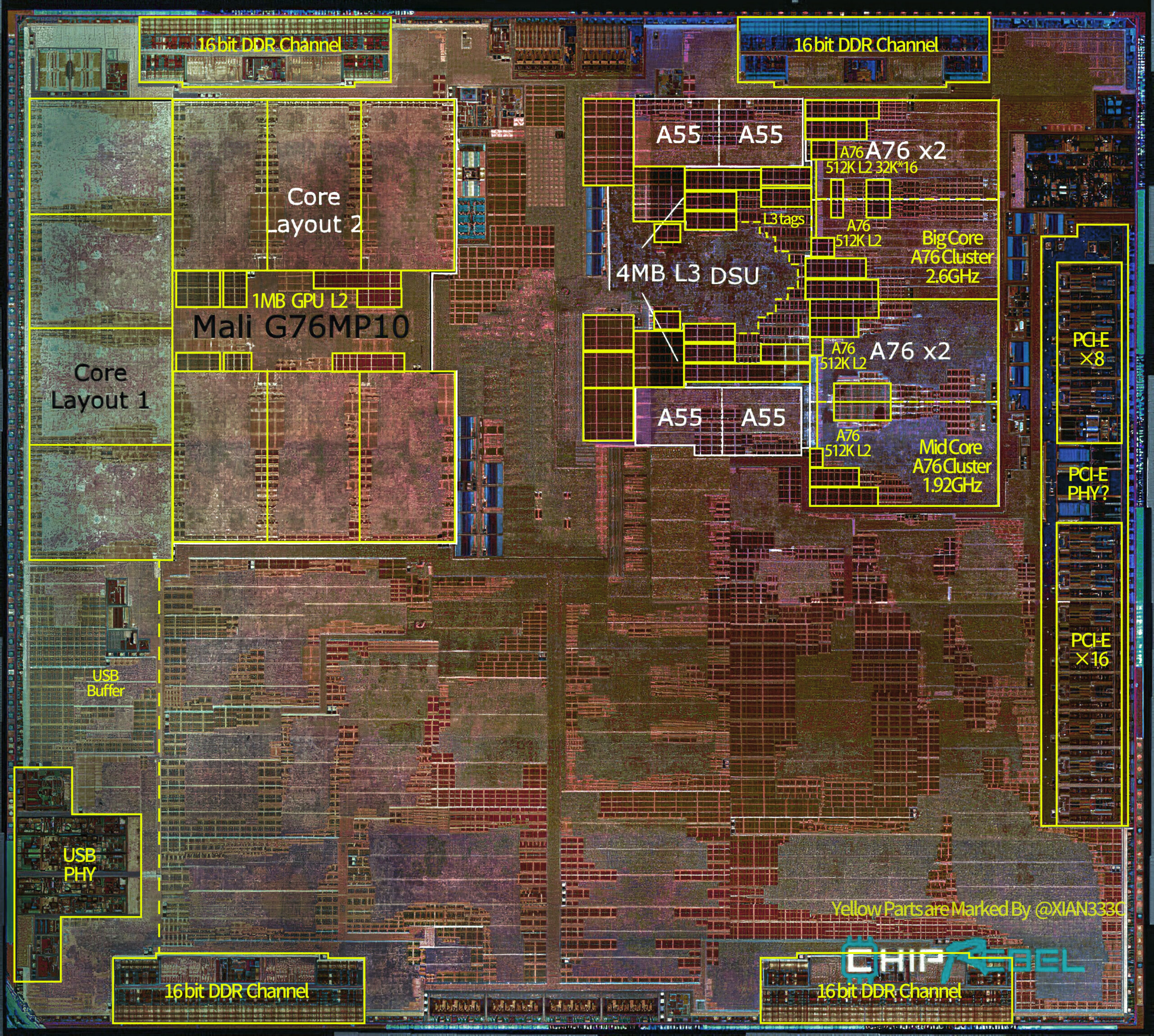

Image from CHIPREBEL,yellow parts of floor plan are marked by me.
Kirin 980 | area(mm^2) | size(MiB) | SRAM density(MB/mm^2) |
A76 big cluster L2 | 0.459584193 | 1 | 2.175879884 |
A76 mid cluster L2 | 0.43303658 | 1 | 2.309273733 |
Shared L3 | 1.702844066 | 4 | 2.349011327 |
GPU L2 | 0.465062787 | 1 | 2.150247294 |
TSMC 7nm HP | 0.92464698 | 2 | 2.162987652 |
TSMC 7nm HD | 2.135880646 | 5 | 2.340954776 |
total | 3.060527627 | 7 | 2.287187327 |
Kirin980(TSMC 7nm HD) | Kirin980(TSMC 7nm HP) | Lakefield(Intel 10nmSF) | SD855(TSMC 7nm DUV HD) | KX5000(HLMC 28nm) | |
SRAM density | 2.340954776 | 2.162987652 | 1.675987565 | 2.463892974 | 0.407069712 |
Relative upshift | 0.00% | 8.23% | 39.68% | -4.99% | 475.07% |
